Automating Road Inspection: How MotionCam-3D Delivers High-Speed 3D Scanning in Any Environment

Modern infrastructure demands continuous monitoring to ensure safety and optimize maintenance. Traditional road inspection methods are slow, disruptive, and often subjective. The future lies in automated, high-speed 3D scanning systems that can capture pavement conditions at normal driving speeds.

Neousys Technology engineers industrial computing platforms built for the world's harshest environments. Their Nuvo series rugged computers are designed to deliver unwavering performance where conventional systems fail: in vehicles subjected to constant vibration, unstable power, extreme temperatures, and demanding real-time 3D data acquisition requirements.

The success of this system hinged on a critical partnership: integrating Photoneo's cutting-edge MotionCam-3D vision technology, which provides the precision "eyes" that Neousys' robust computing "brain" brings to life on the open road.

Our Technology: Freezing Motion with Parallel Structured Light (PSL) For Dynamic Road Inspection

Traditional road inspection is limited by speed. Standard 3D scanning methods require multiple frames or projections to build a 3D model, resulting in motion blur and artifacts when used on a moving vehicle. Our solution, the MotionCam-3D Color M, shatters this limitation.

It utilizes our proprietary Parallel Structured Light (PSL) technology, an advanced 3D imaging technique designed specifically for capturing dynamic scenes. Unlike sequential systems, PSL captures all necessary depth information in a single exposure.

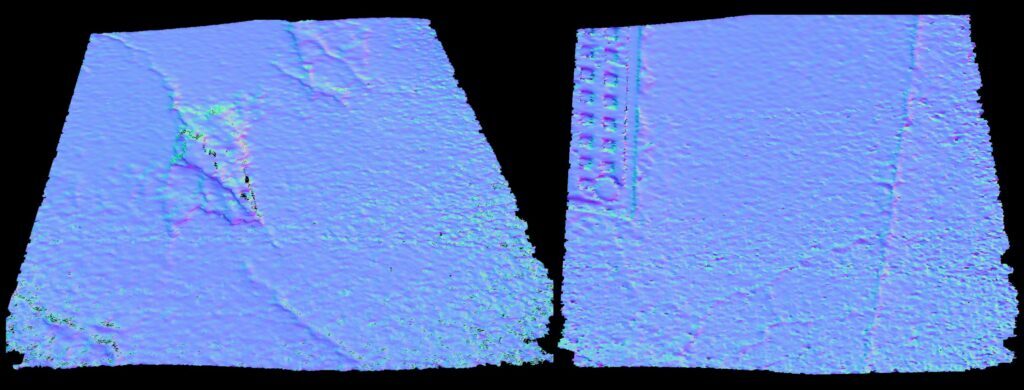

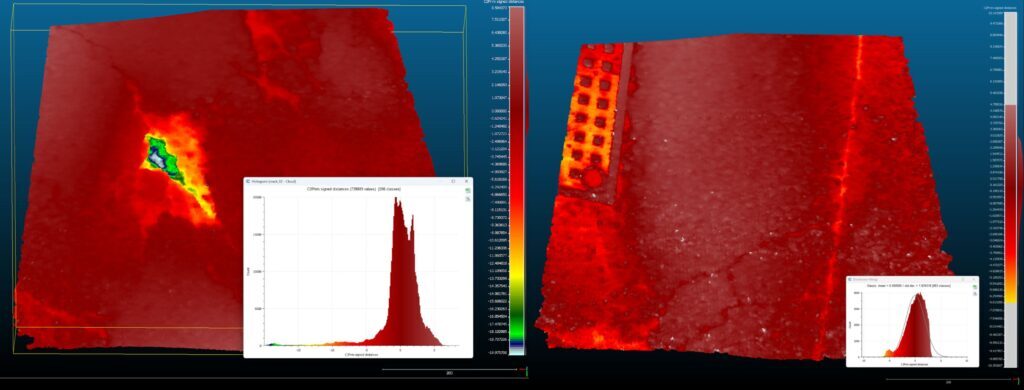

Our novel sensor and projection system "freezes" motion, allowing our camera to acquire a single-shot, high-resolution depth map at a specific instant in time. This preserves the geometric integrity of the road surface, enabling accurate 3D reconstruction of pavement conditions even as the inspection vehicle travels at normal driving speeds.

The Challenge: Taking High-Res 3D Data onto the Open Road

Our MotionCam-3D provides the perfect "eyes" for this application, but a complete solution requires a robust "brain."

Capturing this much high-resolution 3D data at high speed generates a massive data stream that must be processed, fused, and stored in real-time. Deploying a high-performance computer onto a moving vehicle presents a severe set of engineering challenges:

1. Harsh Environment: The computer must survive constant, rigorous shock and vibration from the road, which can loosen components and cause system failure.
2. Unstable Power: Vehicle electrical systems are notoriously "dirty," with power fluctuations during startup and shutdown that can corrupt data or damage sensitive hardware.
3. Computational Demand: Our system requires significant computing power to handle the data stream from the MotionCam-3D, often for real-time operations like 3D Instant Meshing.
4. Connectivity: The solution must provide stable power and data connections for our camera (ideally PoE+), inputs for other vehicle sensors, and robust wireless communication (5G/4G) for real-time data uploading.

Our Solution: Partnering with Neousys for a Rugged Computing Platform

To create a field-ready solution that their customers can depend on, Neousys needed a 3D vision partner whose technology could deliver studio-grade scanning precision in the chaotic environment of a moving vehicle. They selected Photoneo and our MotionCam-3D technology to serve as the high-performance sensor at the heart of their rugged computing platform.

The Neousys platform directly addresses every challenge we faced in designing our mobile inspection solution:

• Vibration Immunity: The Nuvo series systems are built for this environment. With E-MARK certification and compatibility with MIL-STD-810G (when using their patented damping brackets), the computers can easily withstand the shock and vibration (up to 3Grms) of a moving vehicle.
• Reliable Performance: These systems provide the processing oomph we need, supporting powerful Intel® Core™ processors and dedicated NVIDIA® graphics cards. This ensures our 3D meshing libraries can run smoothly on-the-fly, fusing individual scans into a complete model.
• Simplified Connectivity: The Nuvo's integrated PoE+ ports are a perfect match for our MotionCam-3D Color M, allowing us to power the camera and transmit data through a single, secure cable. This simplifies installation and reduces potential points of failure.
• Intelligent Power Management: The most critical feature for data integrity is Neousys' patented SuperCAP power backup module. This module monitors the vehicle's power. If it detects a failure or shutdown, it instantly provides backup power to the computer, allowing it to perform a graceful shutdown. This protects our hardware and, most importantly, safeguards the valuable scan data that has been collected.
• Real-Time Data Upload: With mini-PCIe sockets and SIM slots, the system is easily equipped with 5G/4G or WiFi modules. This allows our customers to stream data back to a central control room in real-time, enabling V2X (Vehicle to Everything) applications and immediate analysis.

Conclusion

By pairing Photoneo's industry-leading MotionCam-3D technology with the rugged and reliable Neousys Nuvo computing platform, we have delivered a complete, end-to-end solution for road pavement inspection. This partnership allows us to take the power of our PSL technology out of the lab and deploy it successfully where it's needed most: on the road.
